Floor Jack

CAUTION:
  • Never place a support at any point other than the specified one, or that point will be deformed.
  • For lifting, put rubber or similar material between the side sill and rigid rack, otherwise the side sill area will be damaged.

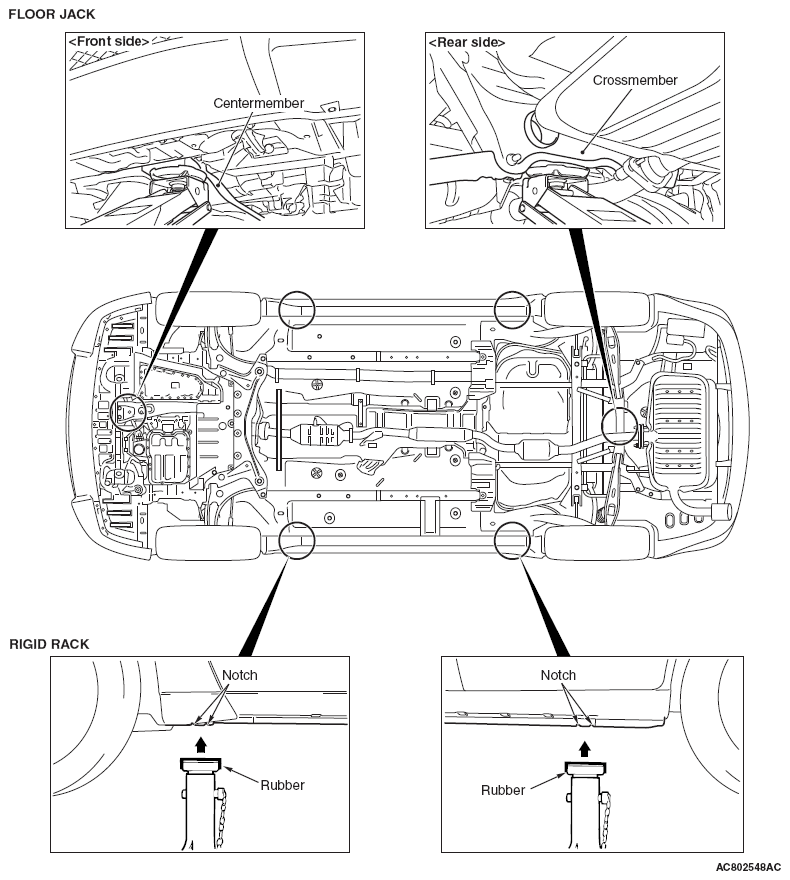

    Fig 1: Identifying Lifting, Jacking Support Location
    G06667519Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
