Disk Brake Pad Check
CAUTION:
If there is a significant difference in thickness between the brake pads at right and left, check the sliding area and the runout of the brake disk (Refer to
DISC BRAKE ROTOR CHECK
).

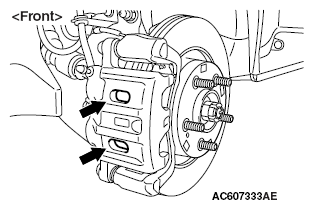

- Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 10.0 mm (0.39 inch)
Minimum limit: 2.0 mm (0.08 inch)
- If the brake pad thickness is less than the limit value, replace the brake pad (Refer to BRAKE PAD REPLACEMENT <RALLIART> ).
