Transfer Oil Change

  1. Remove the engine room under cover front B assembly. (Refer to UNDER COVER .)
  2. Remove the drain plug and gasket to drain the oil.
  3. Install the drain plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  4. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.

    Brand name: DiaQueen LSD gear oil

    Quantity: 0.8 dm 3  (0.85 quarts)

  5. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  6. Install the engine room under cover front B assembly. (Refer to UNDER COVER .)

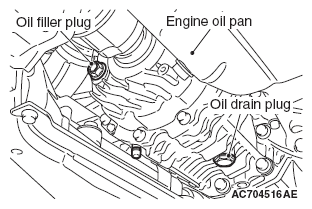

    Fig 1: Identifying Oil Filler Plug And Oil Drain Plug
    G06667588Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Identifying Filler Plug Hole
    G06667589Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
