Disk Brake Pad Check

Visually check the thickness of brake pad from the inspection hole of the caliper body.
Standard value: 10.0 mm (0.39 inch)

Minimum limit: 2.0 mm (0.08 inch)
When the thickness is lower than the limit value, replace both brake pads (right and left) as a set.

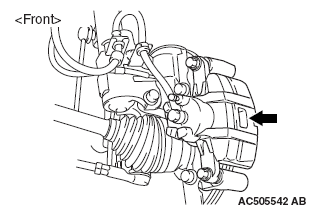

Fig 1: Locating Front Disk Brake
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Rear Disk Brake
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the parts indicated in the figure, swivel the caliper assembly upward and retain it with a wire or similar tool.

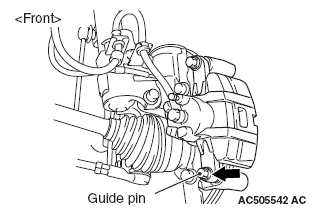

Fig 3: Locating Front Guide Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

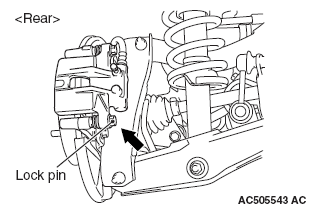

Fig 4: Locating Rear Lock Pin
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the following parts from the caliper assembly.
1. Shim
2. Pad assembly <front>
3. Pad & clip assembly <rear>
4. Pad & wear indicator assembly
5. Clip
In order to measure the brake drag force after pad installation, measure the hub sliding torque with no pad attached (Refer to FRONT DISC BRAKE ASSEMBLY ).
Install the pad and caliper assembly, and check the brake drag force (Refer to FRONT DISC BRAKE ASSEMBLY ).

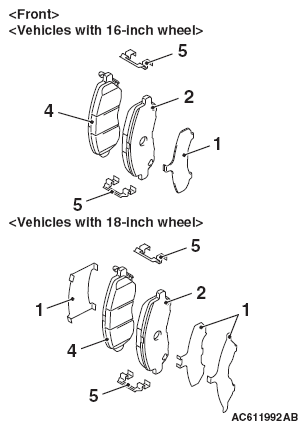

Fig 5: Exploded View Of Front Caliper Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Exploded View Of Rear Caliper Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
