How To Perform Actuator Test
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

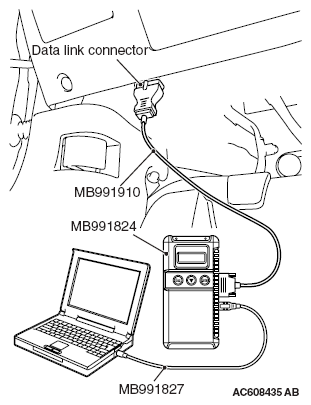

- Connect the scan tool MB991958 to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "System Select."
- Select "AUTO A/C" from "System List," and press the "OK" button.
- Choose "Actuator Test" from "AUTO A/C" screen.
- Choose an appropriate item and select the "OK" button.
