DIAGNOSTIC ITEM 13: Diagnose the lines between joint connector (CAN2) and joint connector (CAN3): Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

Fig 1: CAN-C Communication Circuit (M/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

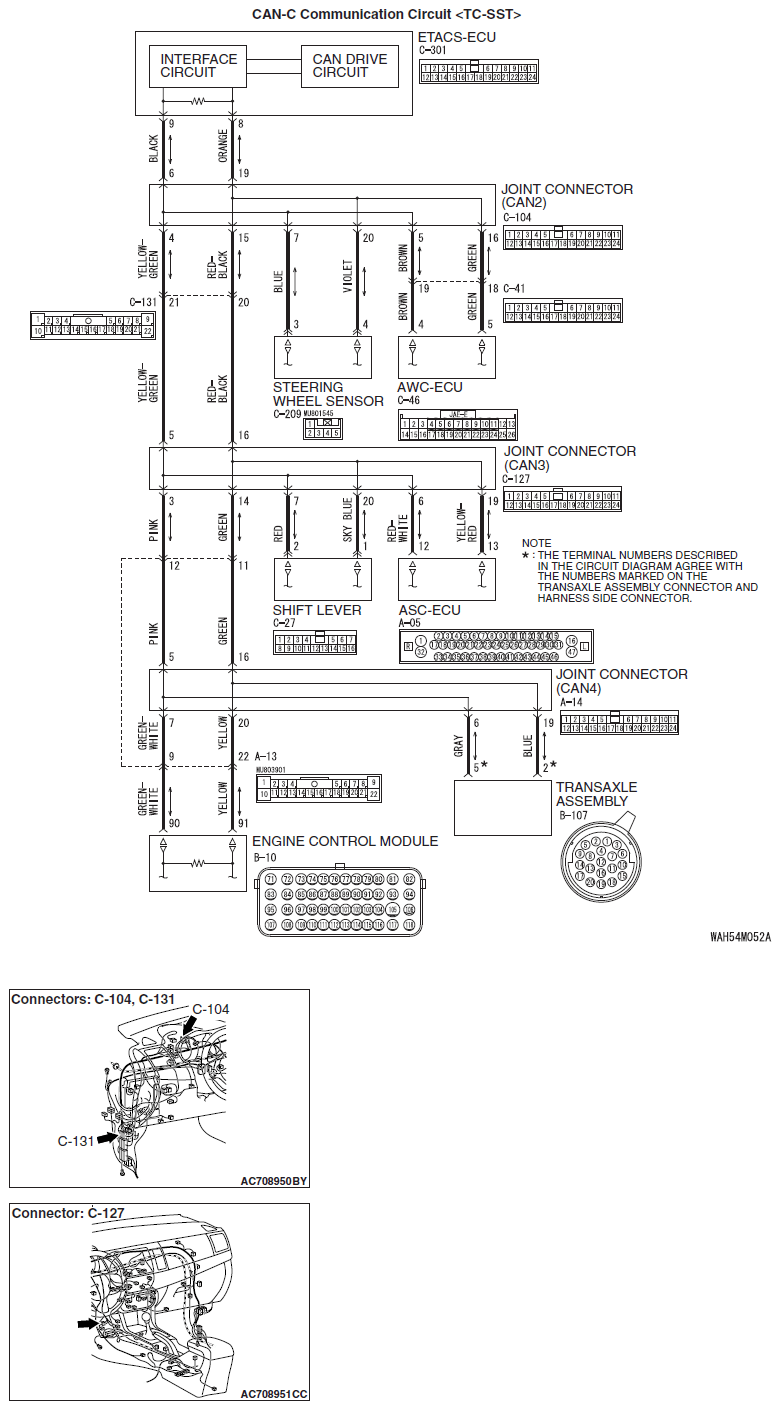

Fig 2: CAN-C Communication Circuit (TC-SST)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
