>>B<< EGR Inlet Pipe Gasket/EGR Valve Support Gasket/EGR Pipe Gasket Installation

WARNING: This page is about a different variant/trim than selected.

Temporarily tighten each part so that the protrusion of each gasket is positioned as illustrated.

Fig 1: Identifying EGR Valve Pipe, Protrousion And EGR Vale
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

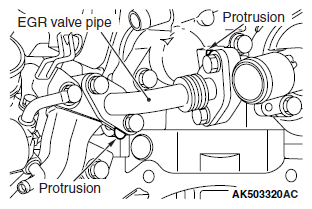

Fig 2: Identifying EGR Valve Pipe And Protrusion
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten mounting bolts to the specified tightening torque in the order shown in the illustration.
Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb)

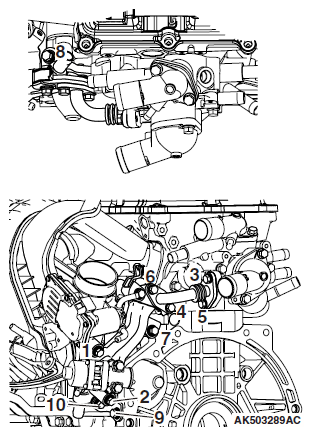

Fig 3: Identifying EGR System Mounting Bolts Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
