>>E<< Connecting Rod Bearing Installation

WARNING: This page is about a different variant/trim than selected.

When replacing a connecting rod bearing, select the bearing corresponding to the crankshaft pin outside diameter according to the crankshaft pin identification in the table below.

CONNECTING ROD BEARING REFERENCE CHART

Crankshaft pin		Connecting rod bearing
Identification mark	Journal diameter mm (in)	Identification mark
1	47.966 - 47.972 (1.8884 - 1.8886)	1
2	47.960 - 47.966 (1.8882 - 1.8884)	2
3	47.954 - 47.960 (1.8880 - 1.8881)	3

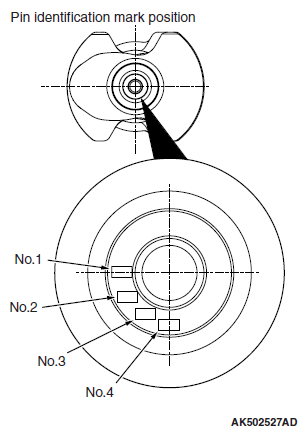

An identification mark of a crankshaft is stamped at the illustrated position by Number

Fig 1: Identifying Crankshaft Pin Identification Mark Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A connecting rod bearing has an identification mark at the illustrated position.

Fig 2: Identifying Connecting Rod Bearings Identification Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
