Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

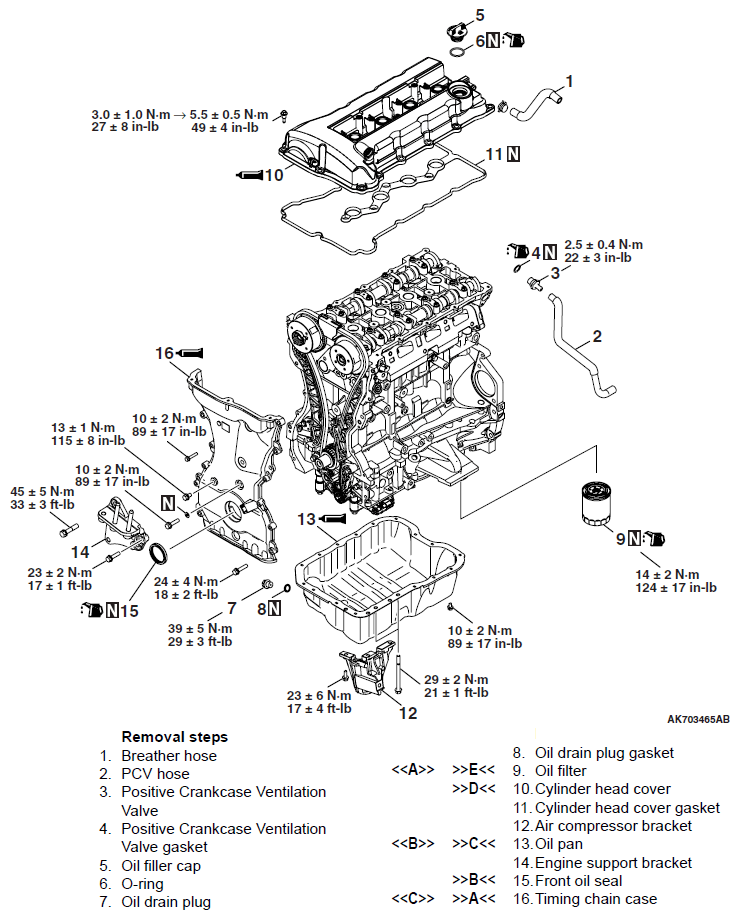

Fig 1: Exploded View Of Oil Pan And Timing Chain Case With Torque Specifications
G06665285Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
