>>D<< Cylinder Head Cover Installation

WARNING: This page is about a different variant/trim than selected.
  1. Completely remove liquid gasket adhering to the cylinder head cover, timing chain case and cylinder head.
  2. Degrease the cylinder head cover, timing chain case and cylinder head.
    CAUTION: Install the cylinder head cover immediately after liquid gasket is applied.
  3. Appropriately use a minimum amount of sealant. Besides, be careful not to allow sealant to squeeze out from the application area.

    Apply liquid gasket of 4 mm (0.15 inch) of thickness in diameter.

    Specified sealant:

    Three bond 1217G or exact equivalent

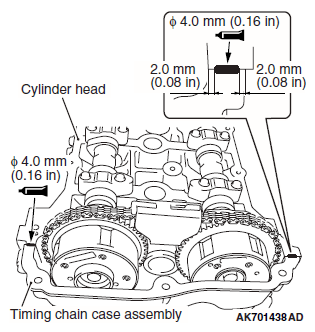

    Fig 1: Identifying Liquid Gasket Applying Area On Timing Chain Case Assembly
    G06665295Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Tighten the cylinder head cover to the tightening torque in the order shown in the illustration.

    Tightening torque: 3.0 ± 1.0 N.m (27 ± 8 in-lb)

  5. Then, tighten it to the specified tightening torque in the same order.

    Tightening torque: 5.5 ± 0.5 N.m (49 ± 4 in-lb)

    Fig 2: Identifying Cylinder Head Cover Bolts Tightening Sequence
    G06665296Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
