>>B<< Front Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply engine oil to the internal circumference of the oil seal.
  2. Use special tool MB991448 to install the front oil seal on the timing chain case.

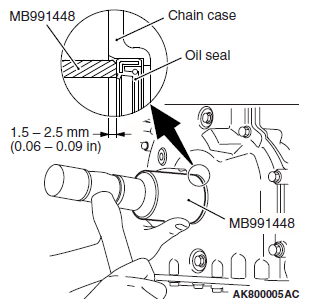

    Fig 1: Installing Front Oil Seal On Timing Chain Case Using Special Tool MB991448
    G06665293Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
