>>B<< Crankshaft Pulley/Crankshaft Pulley Washer/Crankshaft Pulley Center Bolt Installation

WARNING: This page is about a different variant/trim than selected.

Use special tool MB991883, to secure the drive plate.

Fig 1: Securing Flywheel Using Special Tool MB991883
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Wipe the dirt on the crankshaft pulley washer and on the thread hole of the crankshaft using a rag.
Wipe the dirt on the crankshaft pulley and the crankshaft sprocket using a rag, and then remove the grease from the portion shown in the illustration.
NOTE: Remove grease to prevent the coefficient of friction of the pressing portion from declining due to adhesion of oil.
Install the crankshaft pulley.
Apply an appropriate and minimum amount of engine oil to the threaded portion of the crankshaft and lower part of the flange.
With the chamfered side on the inside of the crankshaft pulley washer facing the bolt top, install the crankshaft pulley washer to the crankshaft pulley center bolt.
Tighten the crankshaft pulley center bolt to the specified tightening torque.
Tightening torque: 210 N.m (155 ft-lb)

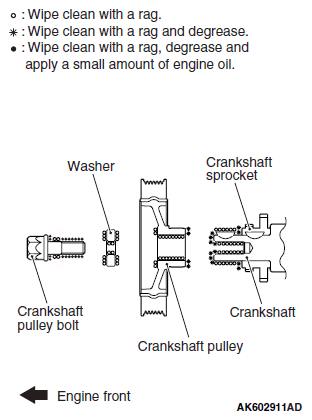

Fig 2: Identifying Dirt Clean On Crankshaft Sprocket And Crankshaft Pulley
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
