Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

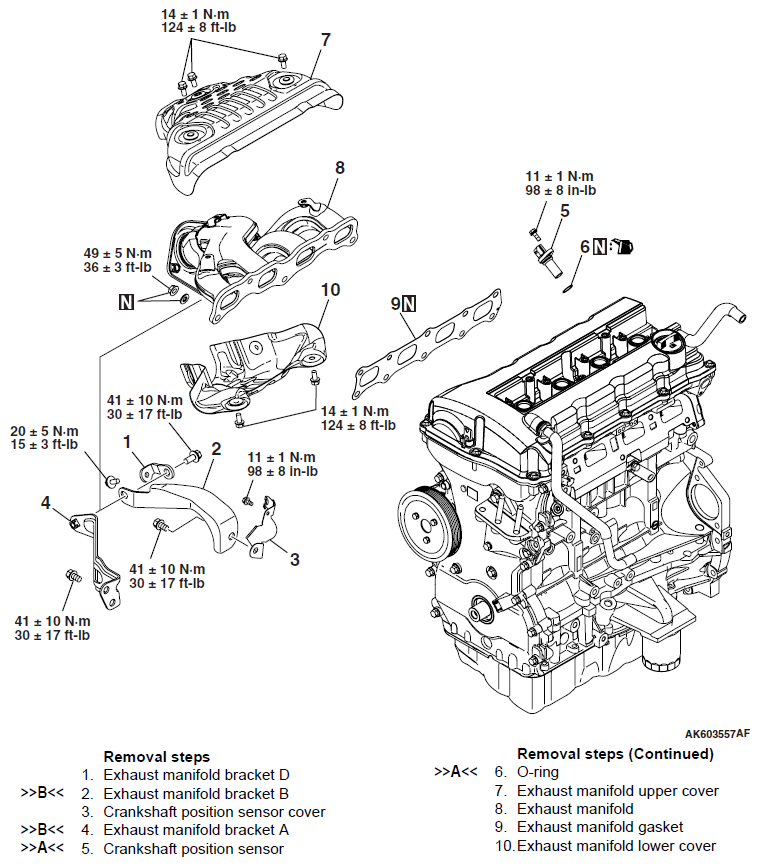

Fig 1: Exploded View Of Exhaust Manifold With Torque Specifications
G06665278Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
