>>C<< Cylinder Head Gasket/Cylinder Head Assembly Installation

WARNING: This page is about a different variant/trim than selected.
  1. Completely remove the liquid gasket on the upper plane of the cylinder block and the lower plane of the cylinder head.
    CAUTION: Sufficiently check that there is no residual oil on the place where degreasing is performed. If fingerprints are left, do not touch it with bare hands after the degreasing, since the oils from your fingers will harm the seal ability.
  2. Degrease the place specified in the illustration.

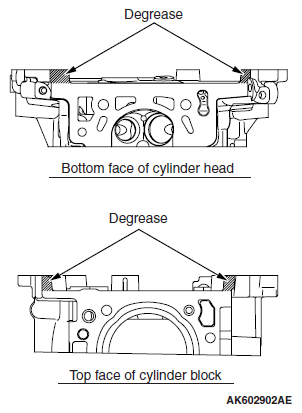

    Fig 1: Identifying Cylinder Head Degreasing Position
    G06665343Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. As shown in the illustration, apply a 2.5 ± 0.5 mm (0.1 ± 0.02 inch) of sealant to the top face of cylinder block.

    Specified sealant:

    Three bond 1217G or exact equivalent

  4. Install the cylinder head gasket.
    NOTE: Check that the center of the liquid gasket is located toward the cylinder gasket in the position specified in the illustration.
  5. As shown in the illustration, apply a 2.5 ± 0.5 mm (0.1 ± 0.02 inch) of sealant to the top face of cylinder head gasket.

    Specified sealant:

    Three bond 1217G or exact equivalent

  6. Install the cylinder head assembly.

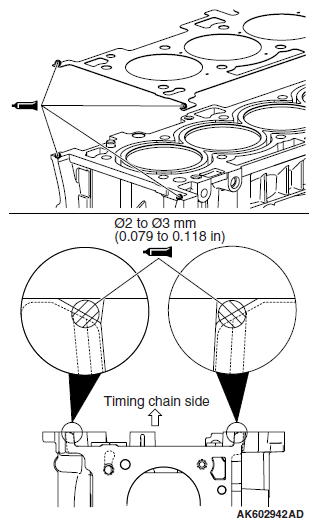

    Fig 2: Identifying Sealant Applying Area On Top Of Face Of Cylinder Block
    G06665344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
