>>B<< Retainer Lock Installation

WARNING: This page is about a different variant/trim than selected.

Use a special tool MD998735, and MB992089 to compress the valve spring and to install the retainer lock.

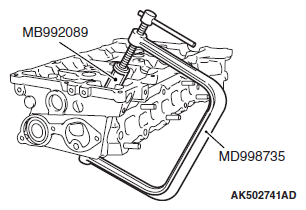

Fig 1: Compressing Valve Spring Using Special Tool MD998735 And MB992089
G06665342Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
