>>A<< Valve Stem Seal Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The valve stem seal must not be reused.
  • Do not damage the tappet wall during assembly.
  • Be sure to use a special tool to install the valve stem seal. Poor installation causes oil loss via valve guides.
  • If oil is not applied, the valve stem seal may rise to the surface after it is press fitted.
  1. Apply a thin coat of engine oil to a new valve stem seal.
    Fig 1: Applying Thin Coat Of Engine Oil Into Valve Stem Seal
    G06665340Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use special tool MD998737 to press fit the valve stem seal into the valve guide with the valve stem used as a guide.

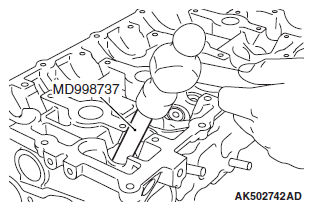

    Fig 2: Pressing Fit Valve Stem Seal Into Valve Guide Using Special Tool MD998737
    G06665341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
