>>D<< Crankshaft Bearing Lower Installation

WARNING: This page is about a different variant/trim than selected.
  1. When replacing the crankshaft bearing lower, select a bearing with the size corresponding to the crankshaft journal diameter in the table below.

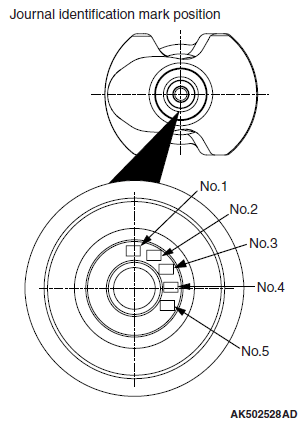

    Fig 1: Identifying Cranshaft Journal Identification Stamp Position
    G06665407Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The crankshaft bearing lower has an identification mark at the illustrated position.
    CONNECTING BEARING REFERENCE CHART

    Crankshaft Crankshaft bearing
    Identification mark Journal diameter mm (in) Identification mark
    0 51.985 - 51.988 (2.04665 - 2.04677) 0
    1 51.982 - 51.985 (2.04653 - 2.04665) 1
    2 51.979 - 51.982 (2.04641 - 2.04653) 2
    3 51.976 - 51.979 (2.04629 - 2.04641) 3
    4 51.973 - 51.976 (2.04618 - 2.04629) 4
    Fig 2: Identifying Crankshaft Bearing Lower Identification Color
    G06665408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the selected crankshaft bearing lower.
