>>C<< Crankshaft Bearing Upper Installation

WARNING: This page is about a different variant/trim than selected.
  1. When replacing the crankshaft bearing upper, select a bearing with the size corresponding to the crankshaft journal diameter in the table below.

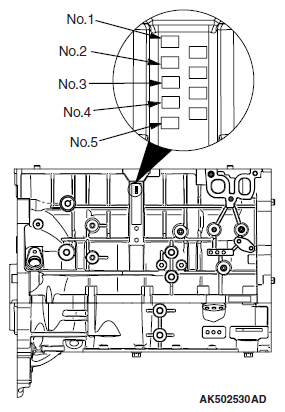

    Fig 1: Identifying Crankshaft Bearing Upper Identification Mark
    G06665405Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The crankshaft bearing upper has an identification mark at the illustrated position.
    CONNECTING BEARING REFERENCE CHART

    Cylinder block Crankshaft bearing
    Identification mark Journal diameter mm (in) Identification mark
    1 56.000 - 56.006 (2.2047 - 202049) 1
    2 56.006 - 56.012 (2.2050 - 2.2051) 2
    3 56.012 - 56.018 (2.2050 - 2.2054) 3
    Fig 2: Identifying Identification Color And Groove
    G06665406Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the selected crankshaft bearing upper.
