General Information: Tweeter

For the front door sash trim, two types of tweeters, the balance dome tweeter <Vehicles with 6 speakers> and soft dome tweeter <Vehicles with 9 speakers 7 position system>, have been established. The soft dome tweeter can play clearer treble with less distortion compared to the balance dome tweeter.

Fig 1: Identifying Tweeter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

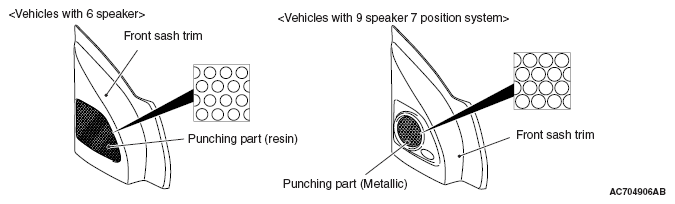

Fig 2: Identifying Front Sash Trim

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Also, two types of front sash trim, a resin type <vehicles with 6 speakers> and punching metal type <vehicles with 9 speaker 7 position system>, are available. With the punching metal type, the metal is adopted for the punching part to enlarge the punching opening, enabling the playback of cleaner treble.
