Inspection Procedure 4: Horn (HIGH or LOW) does not sound while the theft-alarm system is triggered: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

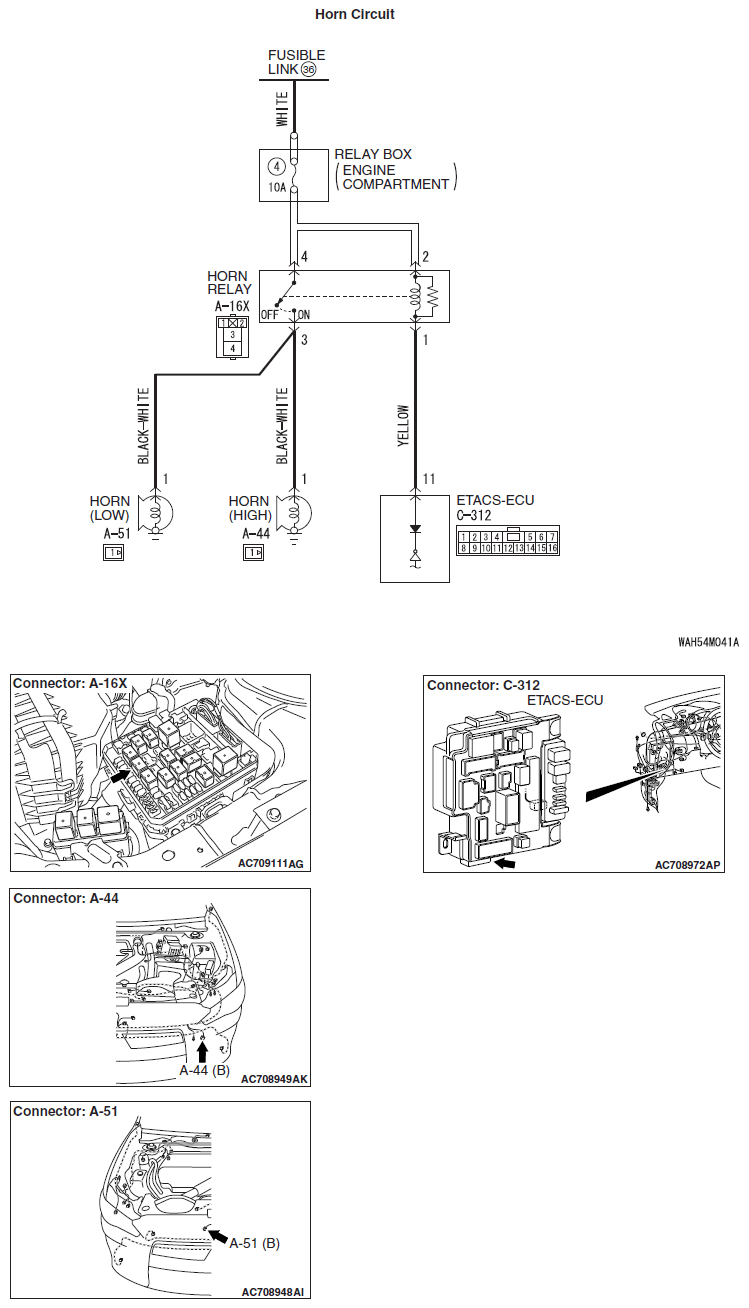

Fig 1: Horn Circuit Diagram
G06678566Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
