Inspection Procedure 1: The theft-alarm is not armed (the theft-alarm indicator does not illuminate): Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

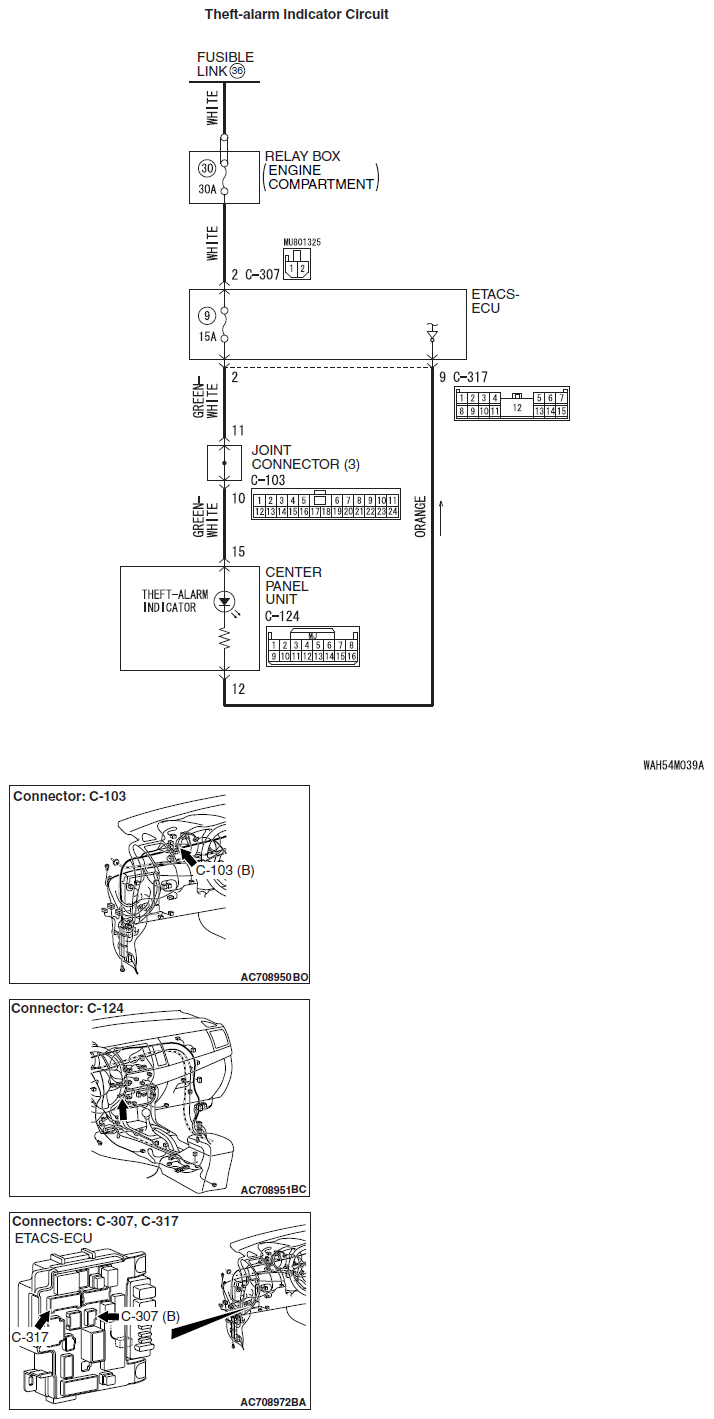

Fig 1: Theft-Alarm Indicator Circuit Diagram
G06678557Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
