>>J<< V Ring Installation

WARNING: This page is about a different variant/trim than selected.

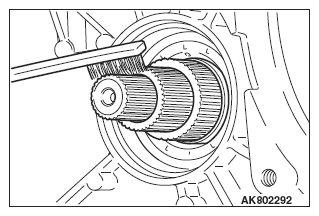

  1. Clean the spline with a brush or the like.
    Fig 1: Cleaning Spline With Brush
    G06672240Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Apply the transaxle oil to the special tool MB992314. Insert the V ring to the special tool MB992314, and install the V ring.
  3. Check that the V ring is installed securely.
    Fig 2: Inserting V Ring To Special Tool Mb992314
    G06672241Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
