>>I<< Transaxle Case Oil Seal (RH) Assembly Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply the transaxle oil to the special tool MB992313. Insert the oil seal to special tool MB992313.

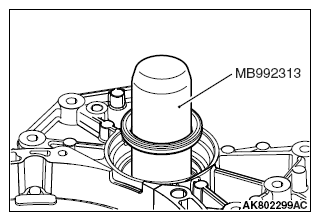

    Fig 1: Installing Oil Seal To Special Tool MB992313
    G06672238Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use special tool MB992312 to install the oil seal to the transaxle.
    Fig 2: Installing Oil Seal To Transaxle
    G06672239Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
