>>G<< Seal Cover Bracket And Seal Cover Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the seal cover to the special tool MB992324 and MB992325.
    Fig 1: Installing Seal Cover To Special Tool MB992324 And MB992325
    G06672231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove the special tool MB992324 from MB992325.
    Fig 2: Removing Special Tool
    G06672232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Install the seal cover to the transaxle case. Remove the special tool MB992325.
    Fig 3: Installing Seal Cover To Transaxle Case
    G06672233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

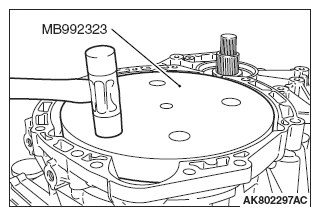

  4. Use special tool MB992323 to install the seal cover to the transaxle.
    Fig 4: Installing Seal Cover To Transaxle
    G06672234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install the seal cover bracket.

    Confirm that it is not shaky.

  6. Tighten the seal cover bracket mounting bolt to the specified torque.

    Tightening torque: 10 ± 1 N.m (89 ± 8 in-lb)

    Fig 5: Identifying Seal Cover Bracket Mounting Bolt
    G06672235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
