Removal And Installation

WARNING: This page is about a different variant/trim than selected.

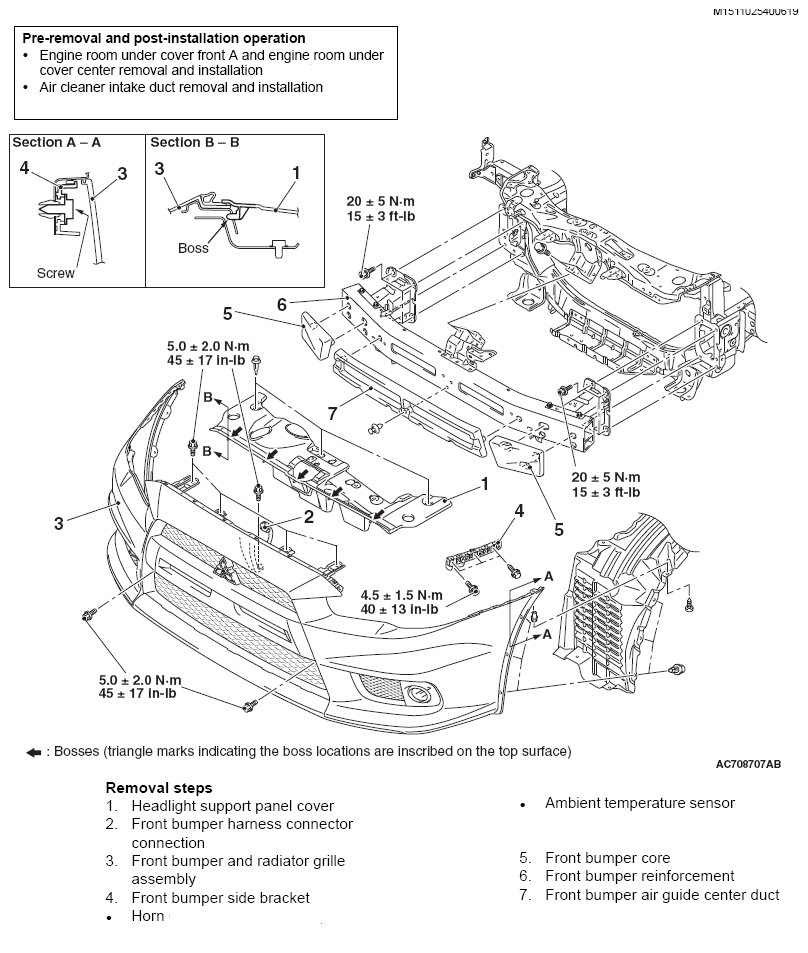

Fig 1: Front Bumper Assembly And Radiator Grille Replacement Components With Torque Specifications
G06677853Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
