Inspection Procedure 7: Check the hands free module power supply circuit: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

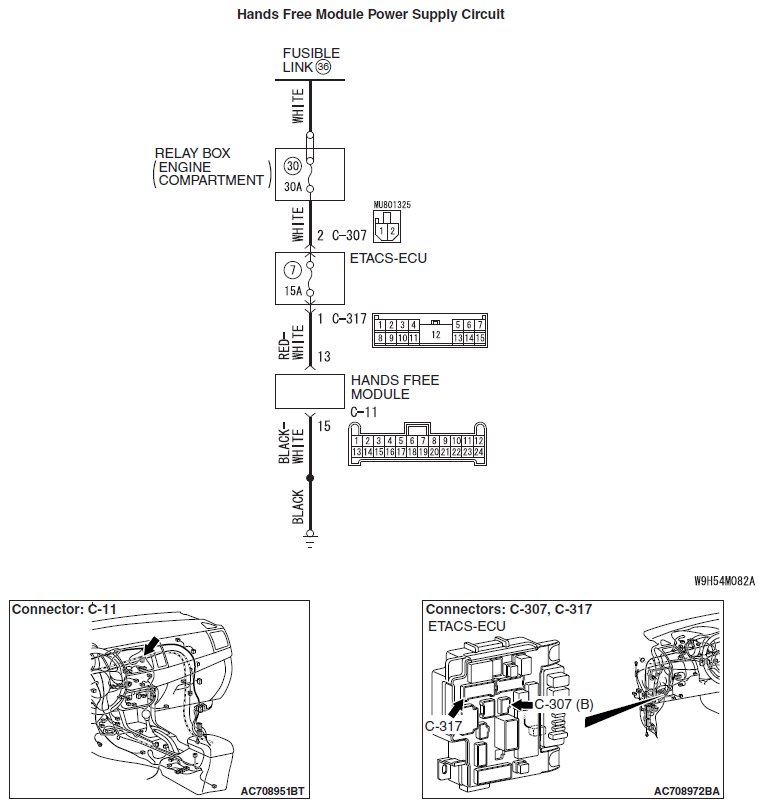

Fig 1: Hands Free Module Power Supply Circuit Diagram
G06678421Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
