Inspection Procedure 4: Even when the steering wheel voice control switch is operated, the conversation is not possible: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

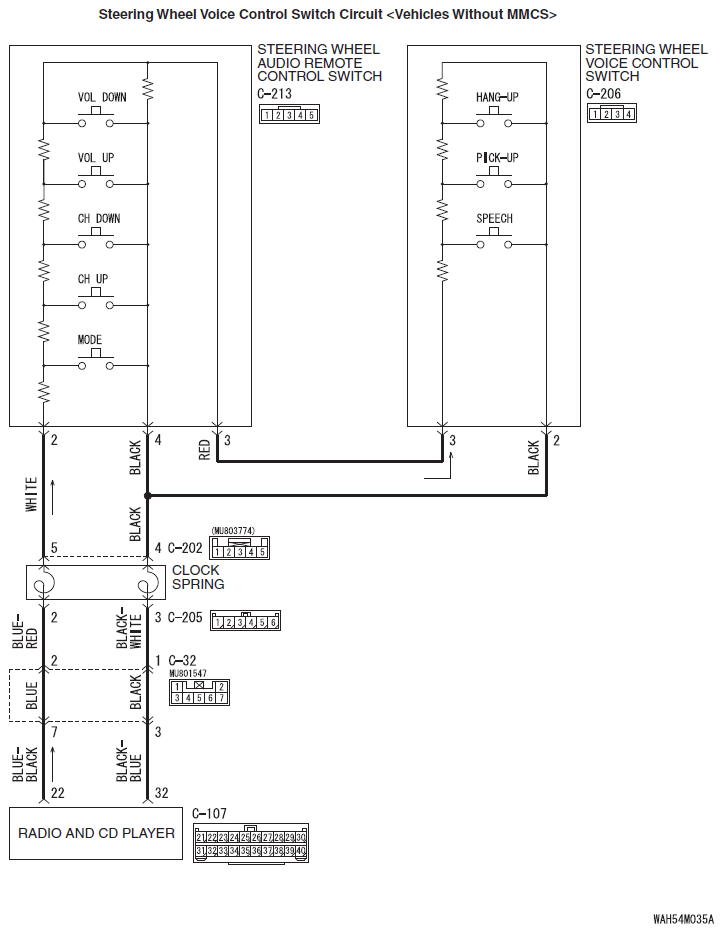

Fig 1: Steering Wheel Voice Control Switch Circuit Diagram (Vehicles Without MMCS)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

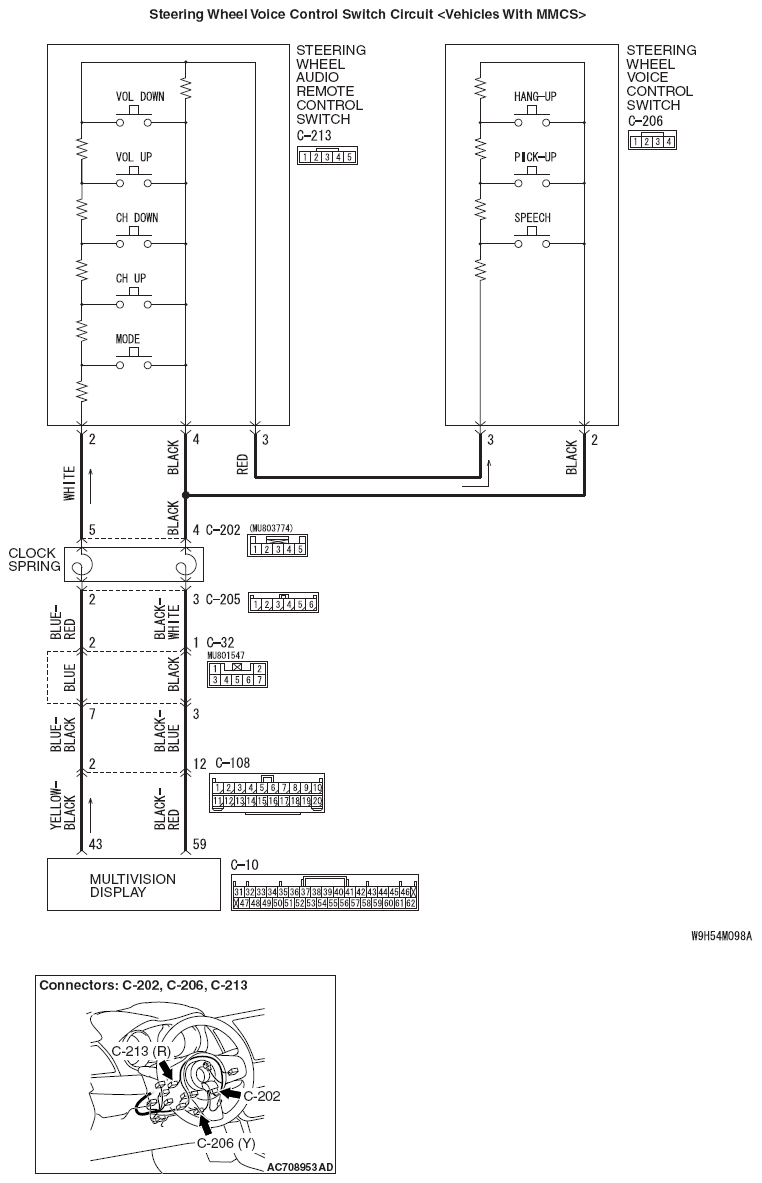

Fig 2: Steering Wheel Voice Control Switch Circuit Diagram (Vehicles With MMCS)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
