Inspection Procedure 1: Hands free cellular phone system does not work normally: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the module, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

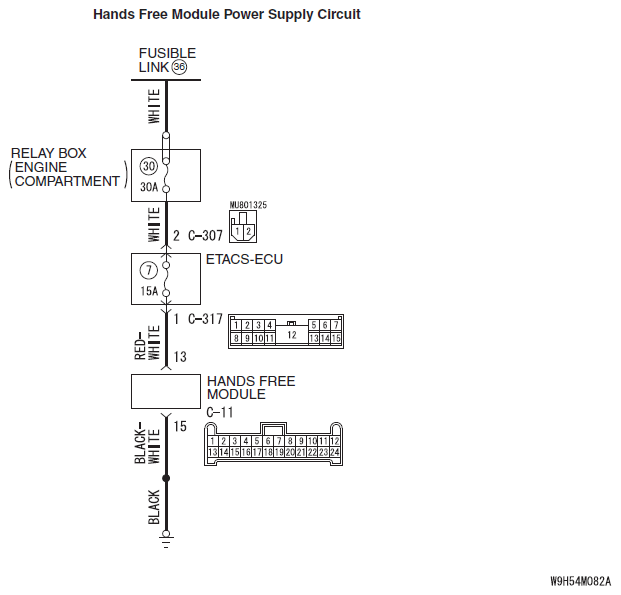

Fig 1: Hands Free Module Power Supply Circuit Diagram
G06678411Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

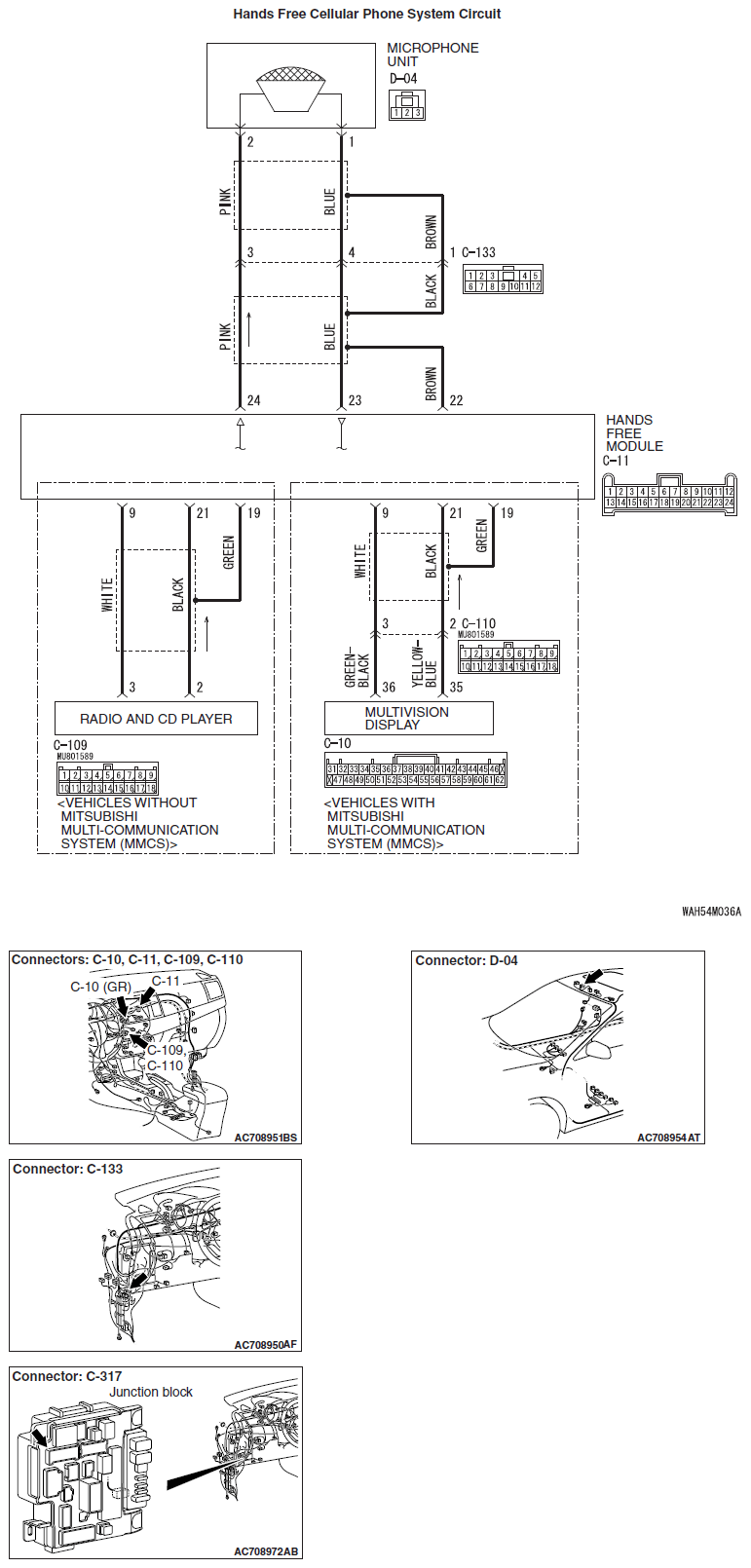

Fig 2: Hands Free Cellular Phone System Circuit Diagram
G06678412Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
