DTC B2468: Microphone input short to BATT; DTC B2470: Microphone input short to ground: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the module, ensure that the communication circuit is normal.

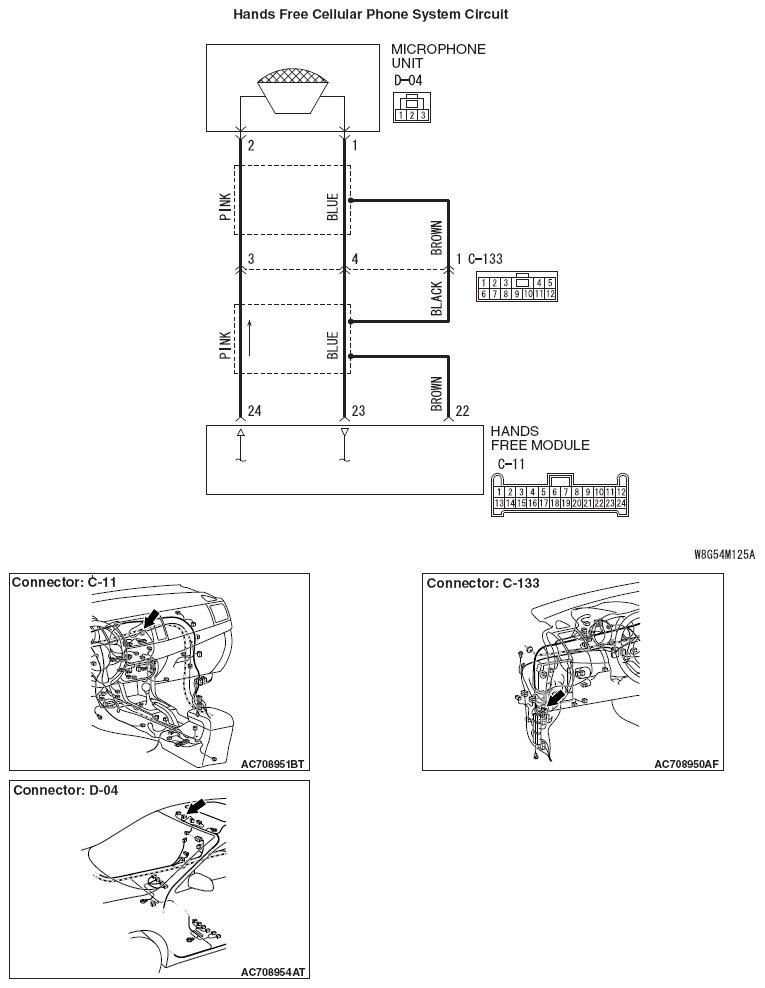

Fig 1: Hands Free Cellular Phone System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
