Inspection Procedure 1: A satellite radio cannot be received: Notes

CAUTION: Before replacing the satellite radio tuner, antenna feeder, radio and CD player <vehicles with radio and CD player> or multivision display <vehicles with MMCS>, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

Fig 1: Satellite Radio Tuner Communication Circuit Diagram - Vehicles With Radio And CD Player

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

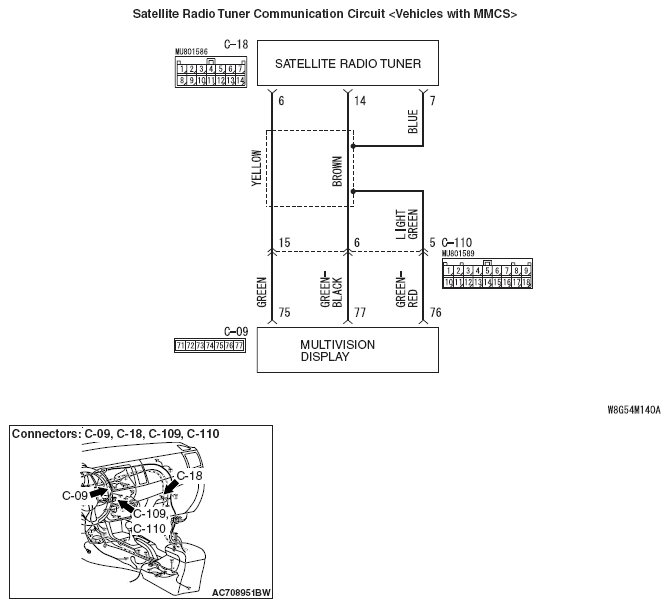

Fig 2: Satellite Radio Tuner Communication Circuit Diagram - Vehicles With MMCS

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
