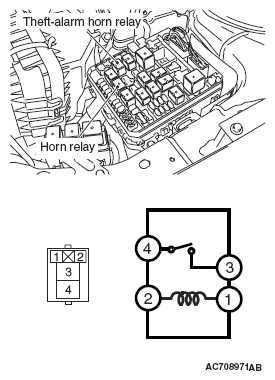

Horn, Theft-Alarm Horn Relay Check
WARNING: This page is about a different variant/trim than selected.
INSPECTION CHART
| Battery voltage |
Terminal number |
Normal condition |
| At no energization |
3 - 4 |
No continuity |
| With current supply [terminal 2 (+), terminal 1 (-)] |
Continuity exists (Less than 2 ohms) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
