Section 45 (Door System - Lancer Evolution)
>>
Window Glass RUNCHANNEL And Door Opening Weatherstrip
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

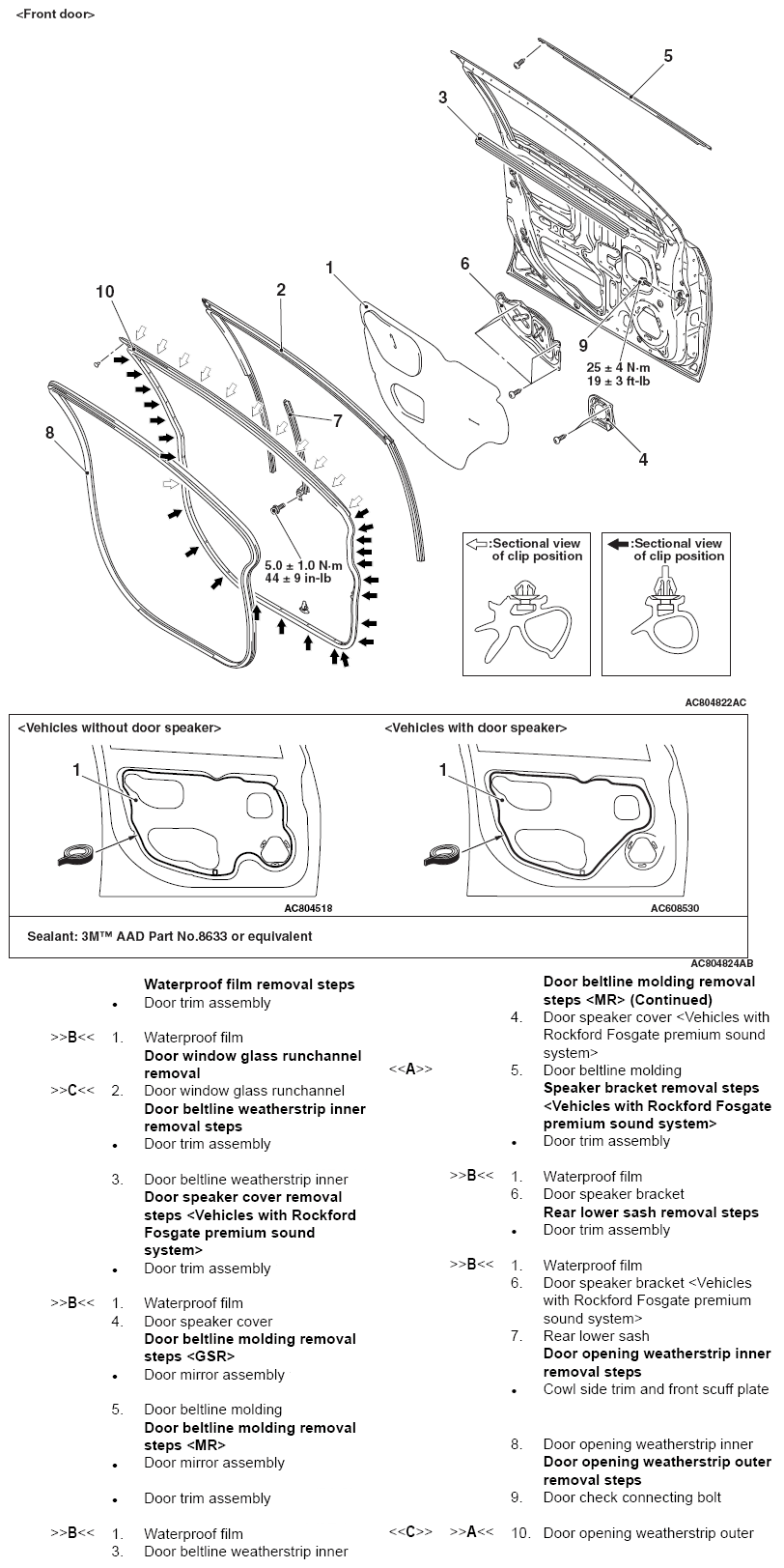

Fig 1: Front Door Window Glass Runchannel And Door Opening Weatherstrip Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

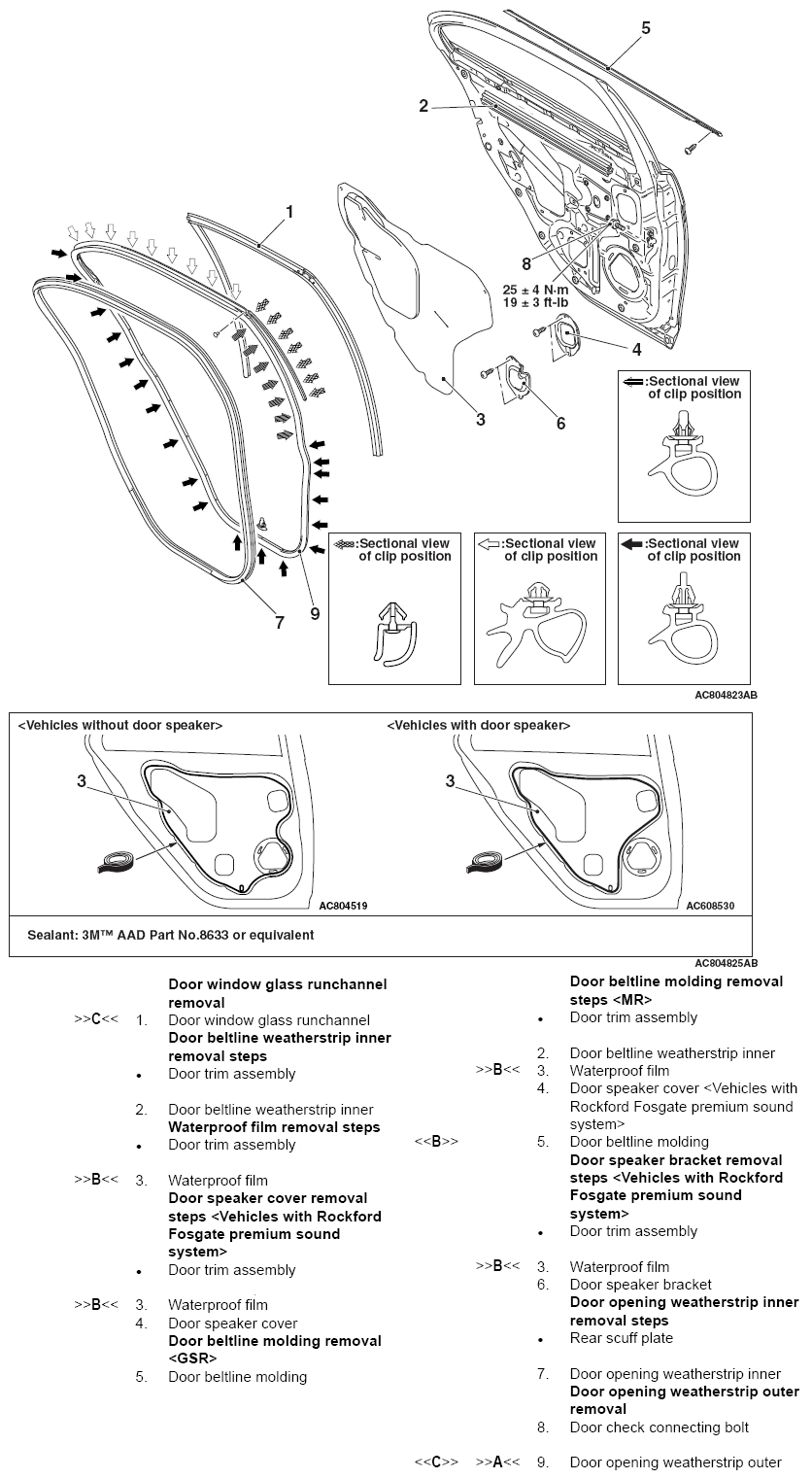

Fig 2: Rear Door Window Glass Runchannel And Door Opening Weatherstrip Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
