>>A<< Fastener/Rear Window Spacer/Glass Stopper/Rear Window Upper Dam/Rear Window Side Dam Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.

Use 3M™ AAD Part number 8906 or equivalent. to degrease the inside and outside edges of the rear window glass and the surface of the body flange.

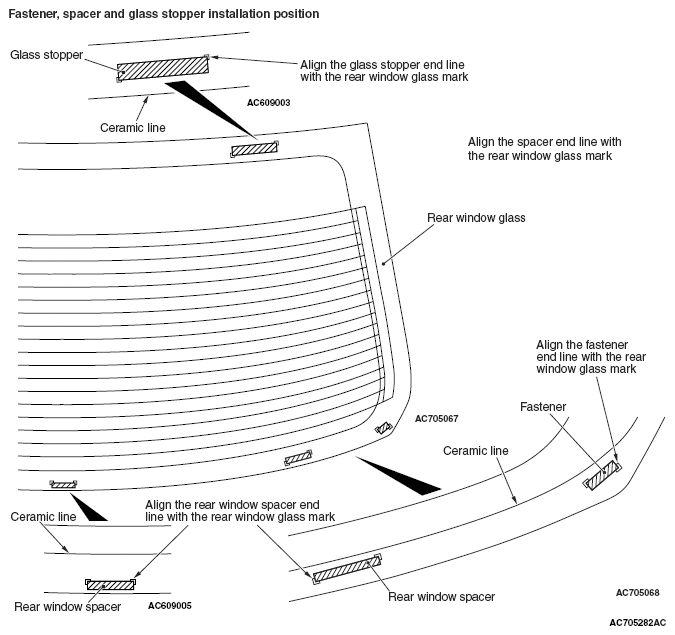

Fig 1: Identifying Fastener, Spacers And Glass Stoppers Installation Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the fastener, rear window spacers, and glass stoppers to the specified positions so that there are no adrift or warped surfaces inside the rear window glass.
Install the fasteners to the specified positions on the body flange.

Fig 2: Identifying Fasteners To Specified Positions On Body Flange
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

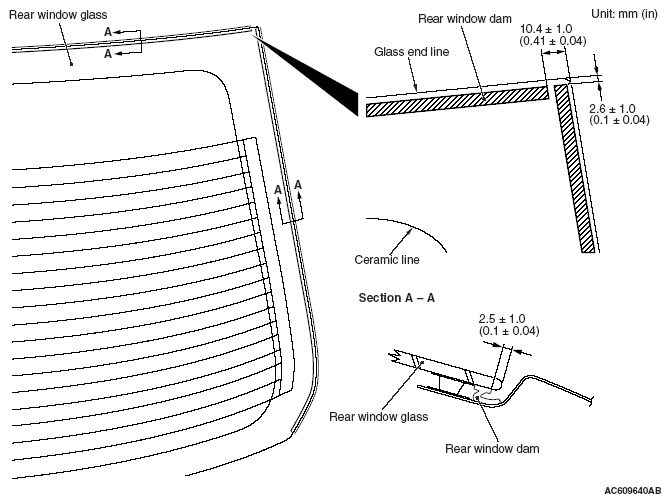

Fig 3: Installing Rear Window Upper Dam And Side Dam To Rear Window Glass
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the rear window upper dam and side dam to the rear window glass.
