Hood Removal And Installation

WARNING: This page is about a different variant/trim than selected.

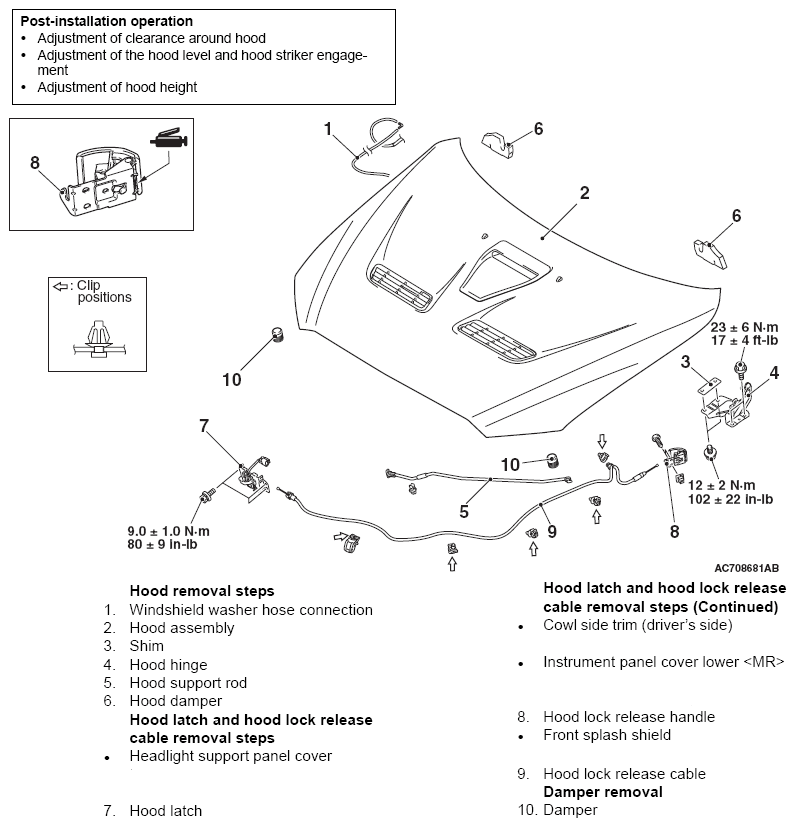

Fig 1: Hood Replacement Components With Torque Specifications
G06677806Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
