Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

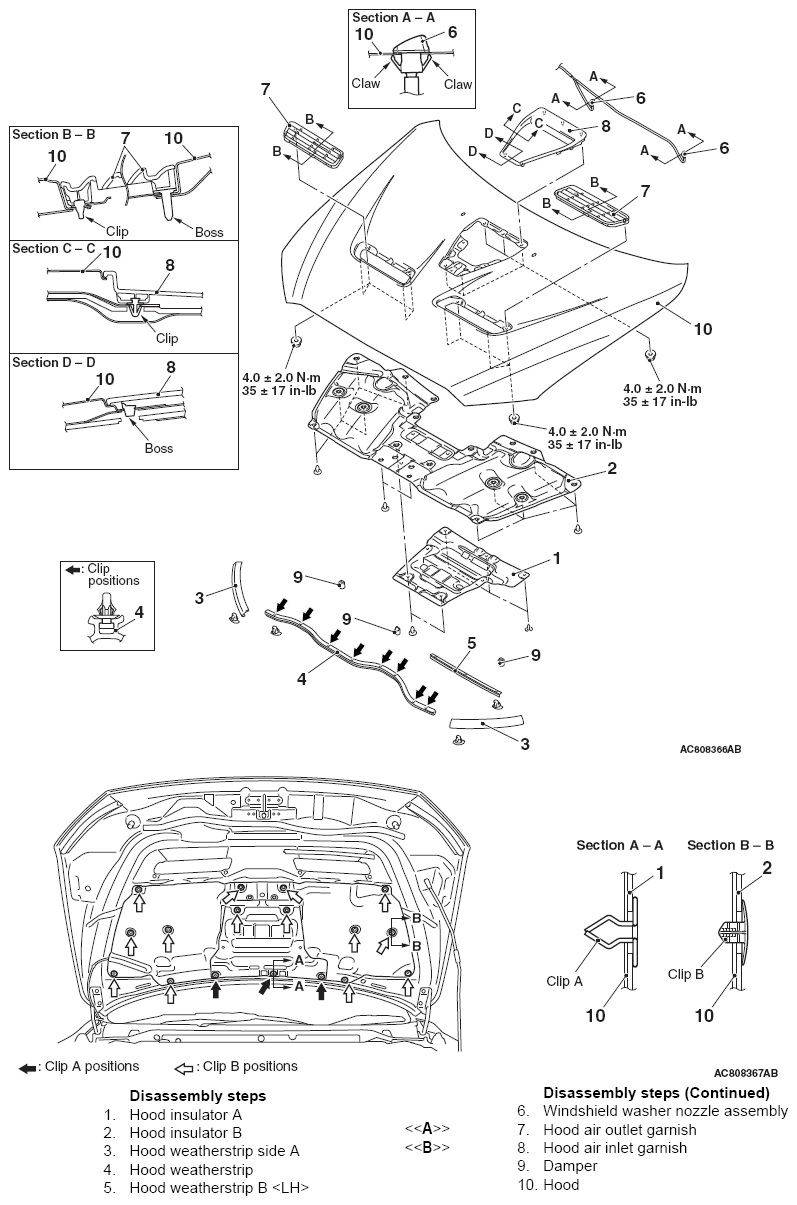

Fig 1: Disassembling View Of Hood With Torque Specifications
G06677808Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
