Front Wheel Alignment Check And Adjustment: Toe-In

Standard value: 0 ± 2 mm (0 ± 0.08 inch)

1. Loosen the jam nut with the tie-rod clip removed, and then perform the adjustment by turning the tie-rod left/right at the same degree in the opposite direction.
   NOTE: The toe moves to the outside by turning the tie-rod left to the forward direction, and right to the reverse direction.
2. After adjustment, check that the steering angle is within the standard range using the turning radius gauge. (Refer to ON-VEHICLE SERVICE .)

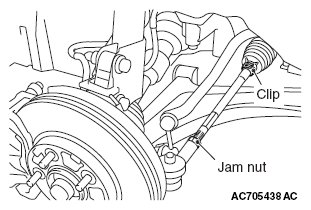

   Fig 1: Identifying Jam Nut With Tie-Rod Clip

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
