>>C<< Transaxle Control Cable Installation

WARNING: This page is about a different variant/trim than selected.

Operate the lever so that the shift control lever positioning mark is set to the N position.

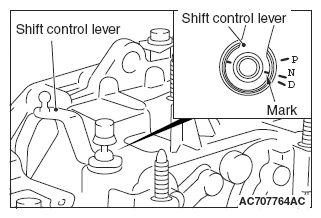

Fig 1: Identifying Control Lever Position
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Move the slider of the transaxle control cable (transaxle side) tip to the direction A to pull up the lock piece to the direction B.
Install the transaxle control cable (transaxle side) in the transaxle control cable bracket at the top of transaxle.
Move the shift lever to the N<==>D position three times or more, and shift to the N position.

Fig 2: Moving Shift Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Connect the transaxle control cable to the shift control lever, and firmly push down the lock piece of transaxle control cable to lock it.
NOTE:
- The slider automatically returns to the fixed position by the spring.
- The lock position of transaxle control cable is automatically adjusted by a spring.

  Fig 3: Pushing Down Lock Piece Of Transaxle Control Cable To Lock
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
