Transfer Oil Change

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine room under cover front B assembly. (Refer to UNDER COVER .)
  2. Remove the drain plug and gasket to drain the oil.
  3. Install the drain plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  4. Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.

    Brand name: DiaQueen LSD gear oil

    Quantity: 0.8 dm 3  (0.85 quarts)

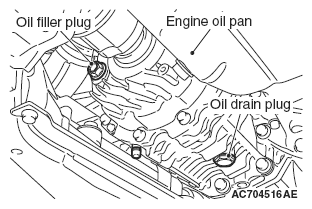

    Fig 1: Identifying Oil Filler Plug And Engine Oil Pan
    G06665627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Install the filler plug and new gasket, then tighten them to the specified torque.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  6. Install the engine room under cover front B assembly. (Refer to UNDER COVER .)
    Fig 2: Identifying Filler Plug And Gasket
    G06665628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
