Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: If a fluid leakage is present in the area around the oil pan, clean around the oil pan. After cleaning, warm up the engine. Only if a fluid leakage is present in the area around the oil pan again, replace the oil pan assembly.

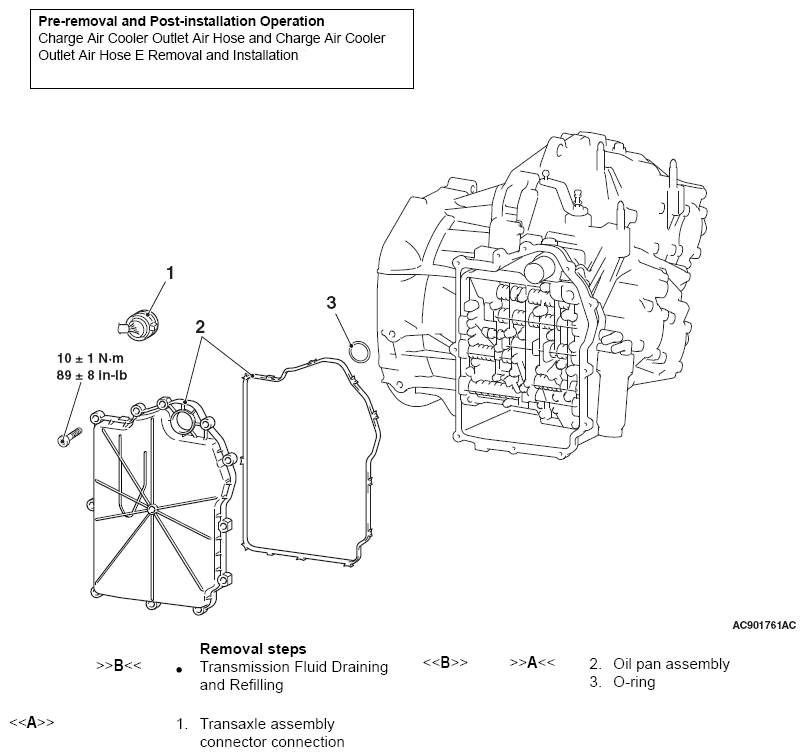

Fig 1: Oil Pan Assembly Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
