Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not refill the fluid when replacing the transaxle assembly and the oil cooler with new ones at the same time.
NOTE:
  • The new transaxle assembly is filled with 7.6 dm3 (8.0 qt) of the fluid (including the oil cooler).
  • The transaxle assembly has a sealed structure, and the fluid does not drain out from parts other than the oil cooler hose.

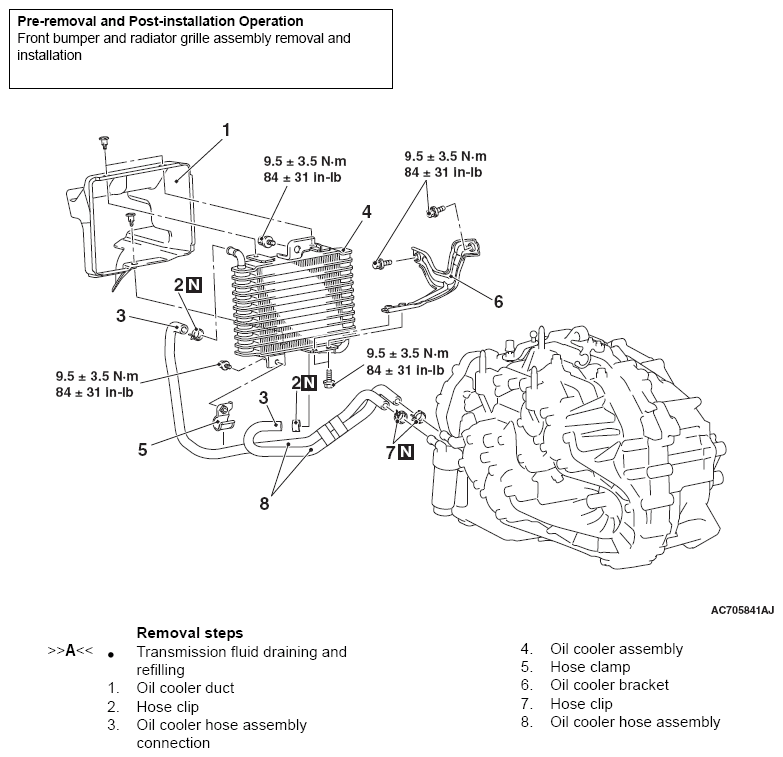

    Fig 1: Oil Cooler Replacement Components With Torque Specifications
    G06665691Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
