Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: When the mechatronic assembly is replaced, reprogram the ECU and carry out the following Teach-In (Refer to TC-SST TEACH-IN  ).

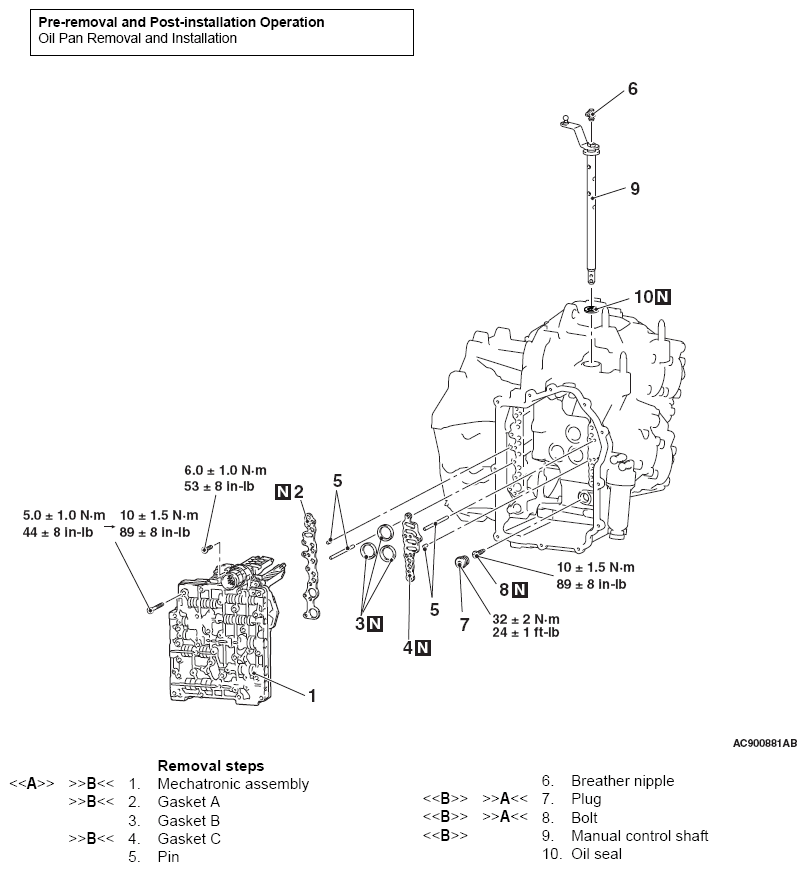

Fig 1: Mechatronic Assembly, Manual Control Lever Replacement Components With Torque Specifications
G06665666Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
