>>B<< Gasket A/Gasket C/MECHATRONIC Assembly Installation

WARNING: This page is about a different variant/trim than selected.
  1. As shown in the illustration, fix the gasket to the transaxle case by pushing the gasket at the area to which the gasket dowel pin is inserted.
    Fig 1: Identifying Gasket
    G06665676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 2: Identifying Dowel Pin
    G06665677Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the mechatronic assembly carefully and tighten the mechatronic assembly mounting bolts to the specified torque in the order of number shown in the illustration.

    Tightening torque: 5.0 ± 1.0 N.m (44 ± 8 in-lb)

  3. Tighten again the mechatronic assembly mounting bolts to the specified torque in the order of number shown in the illustration.

    Tightening torque: 10 ± 1.5 N.m (89 ± 8 in-lb)

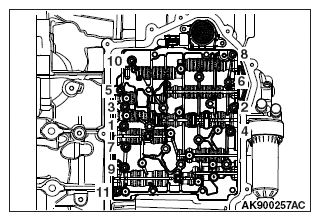

    Fig 3: Identifying Mechatronic Assembly Mounting Bolts
    G06665678Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: When installing bolt, use magnetic tools to prevent them from falling out.
  4. Tighten the bolts to the specified torque.

    Tightening torque: 6.0 ± 1.0 N.m (53 ± 8 in-lb)

  5. Install the connector.

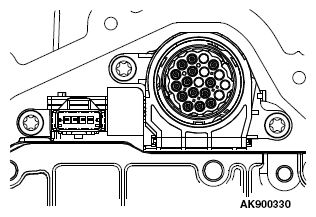

    Fig 4: Identifying Bolts
    G06665679Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
