>>B<< Key Interlock Cable (Shift Lever Side) Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.
- Move the shift lever to the P position, and turn the ignition switch to the LOCK (OFF) position.
- Install the tip of key interlock cable to the lock cam pin of shift lever assembly, using a caution not to twist the inner cable.
- Install the adjuster case with its lock guide pulled up (unlocked).

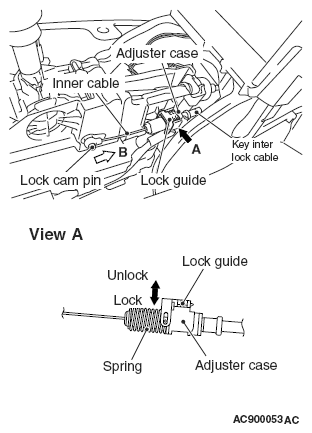

- With the lock cam pin pushed in the direction B as shown in the illustration to remove the slack from the key interlock cable, securely lower the lock guide and lock it.NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
