When Driving In 2ND Gear

WARNING: This page is about a different variant/trim than selected.

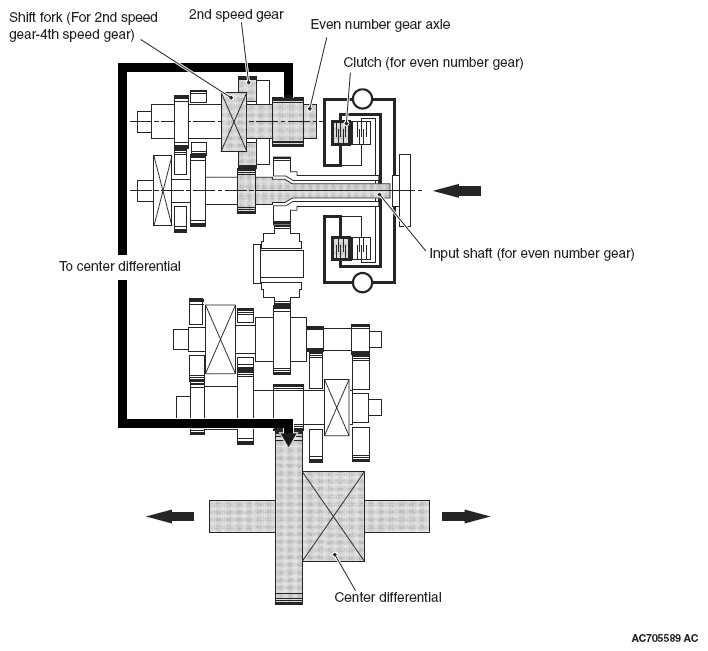

Fig 1: TC-SST Assembly Shifting Mechanism Diagram - When Driving In 2ND Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The clutch (for odd number gears) is released at the shifting timing in accordance with the shift map, and the clutch (for even number gears) is engaged to perform driving with the 2nd gear.

Because the shifting is performed only by the alternation of two clutches, the shifting time is short, and the clutch does not become completely released during driving.
