When Driving In 1ST Gear

WARNING: This page is about a different variant/trim than selected.

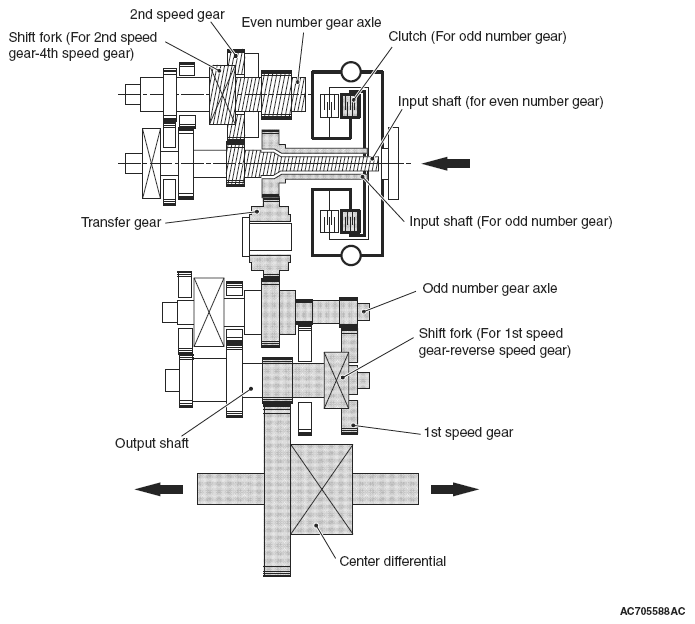

Fig 1: TC-SST Assembly Shifting Mechanism Diagram - When Driving In 1ST Gear
G06665424Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

During driving with the 1st gear, the even number gear clutch is kept released, and the 2nd gear is engaged in advance. (During driving with even number gears, the odd number gears are engaged in advance.)
