Shift Mechanism

WARNING: This page is about a different variant/trim than selected.

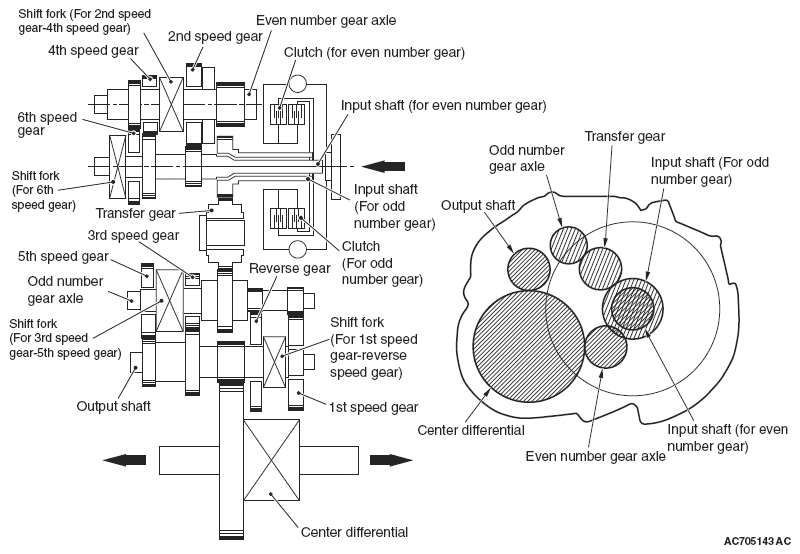

Fig 1: TC-SST Assembly Shifting Mechanism Diagram
G06665422Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The shifting mechanism of TC-SST assembly is divided into two systems as the odd number gear axle (reverse, 1st, 3rd, 5th) and even number gear axle (2nd, 4th, 6th). Each mechanism is joined with an independent clutch, establishing a structure with which two 3-speed M/T mechanisms are combined.
