Hydraulic Mechanism

WARNING: This page is about a different variant/trim than selected.

Fig 1: Hydraulic Mechanism Of TC-SST Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

By the operation of solenoid valve, the valve body feeds the hydraulic pressure needed for the operation of clutch and each shifting section. The solenoid valve is controlled by TC-SST-ECU, and the hydraulic pump generates the hydraulic pressure by using the engine power.

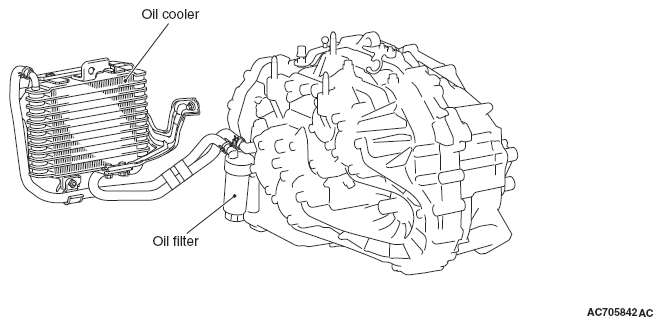

Fig 2: Identifying Oil Cooler And Oil Filter

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Also, to prevent the oil performance drop, the oil cooler and oil filter are equipped.
