Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

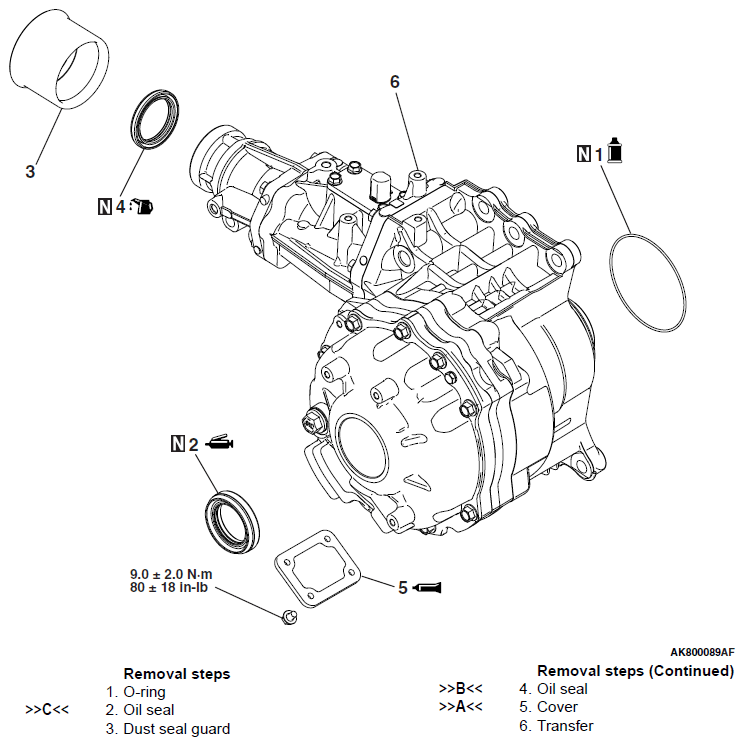

Fig 1: Disassembly And Assembly Of Transfer With Torque Specifications
G06677357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
