Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

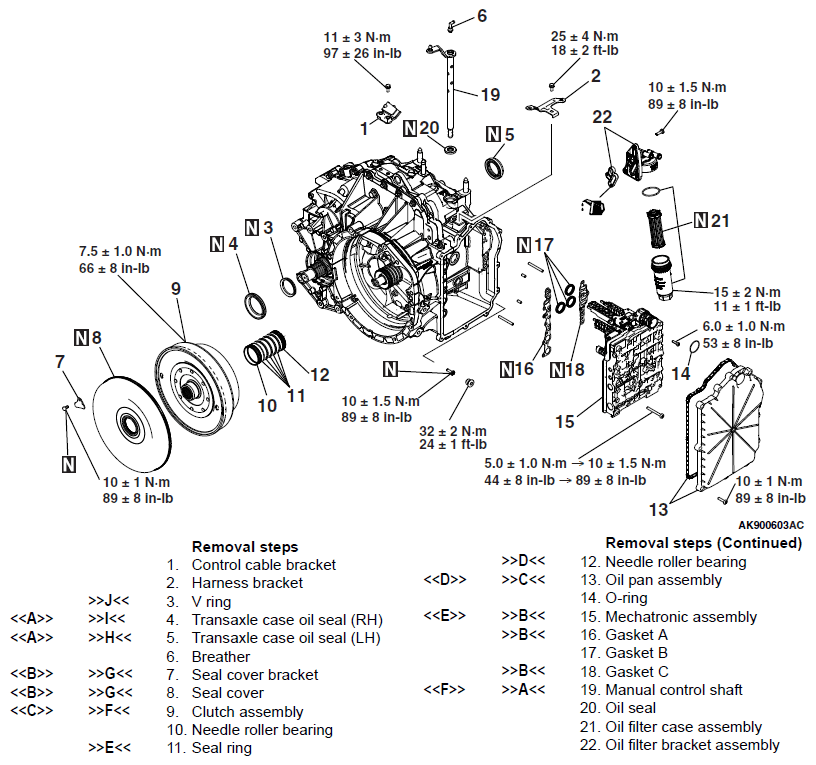

Fig 1: Disassembly And Assembly Of Transaxle With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

CAUTION:

When installing or removing screws, use magnetic tools to prevent them from falling out.
If debris or parts enter into the transaxle case, pay attention to the following to replace the transaxle assembly:
When the mechatronic assembly is replaced, reprogram the ECU and carry out the following Teach-In (Refer to LEARNING PROCEDURE FOR TC-SST ).
When the clutch assembly is replaced, the following Teach-In must be carried out (Refer to LEARNING PROCEDURE FOR TC-SST ).
