>>J<< V Ring Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean the spline with a brush or the like.

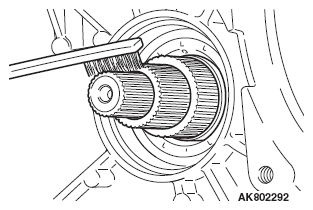

    Fig 1: Cleaning Spline With Brush
    G06471504Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Apply the transaxle oil to the special tool MB992314.

    Insert the V ring to the special tool MB992314, and install the V ring.

  3. Check that the V ring is installed securely.
    Fig 2: Identifying Special Tool MB992314
    G06471570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
